This carbon steel CD weld pin is designed for short‑cycle stud welding. It features stable welding performance, high connection strength and easy installation. Widely used for fixing insulation materials in cabinets, machinery and industrial equipment. Custom sizes and surface treatments are available to meet diverse project requirements.

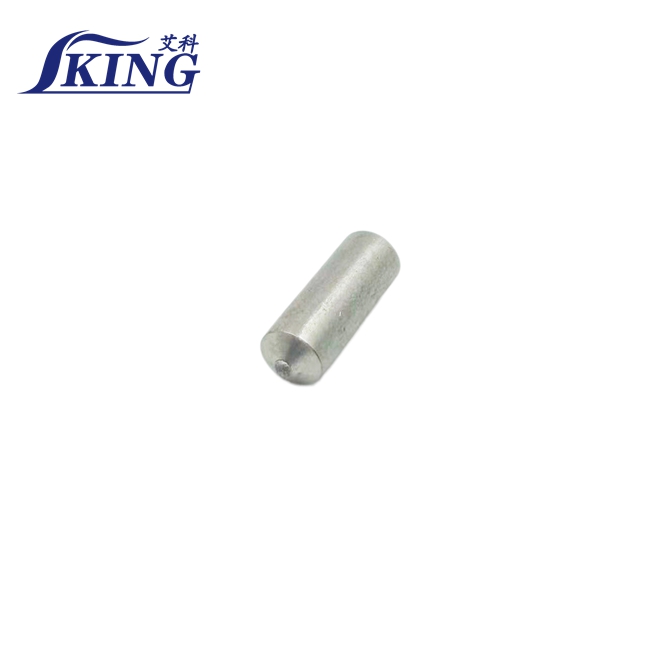

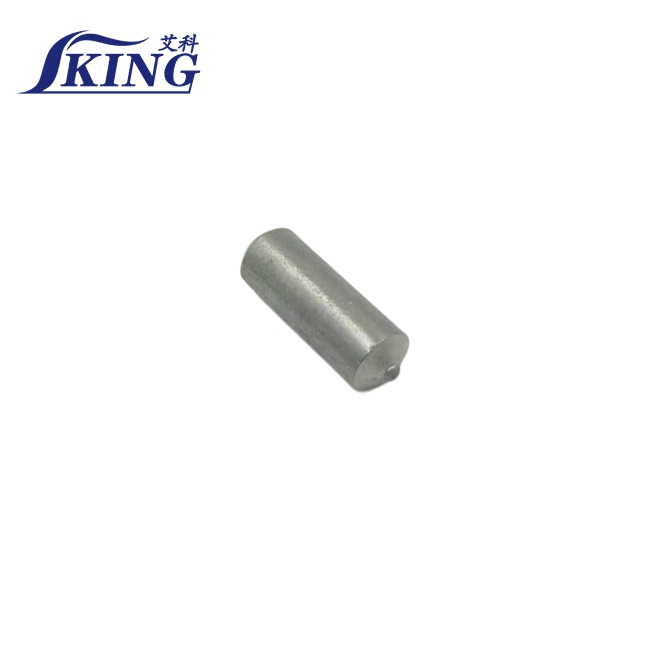

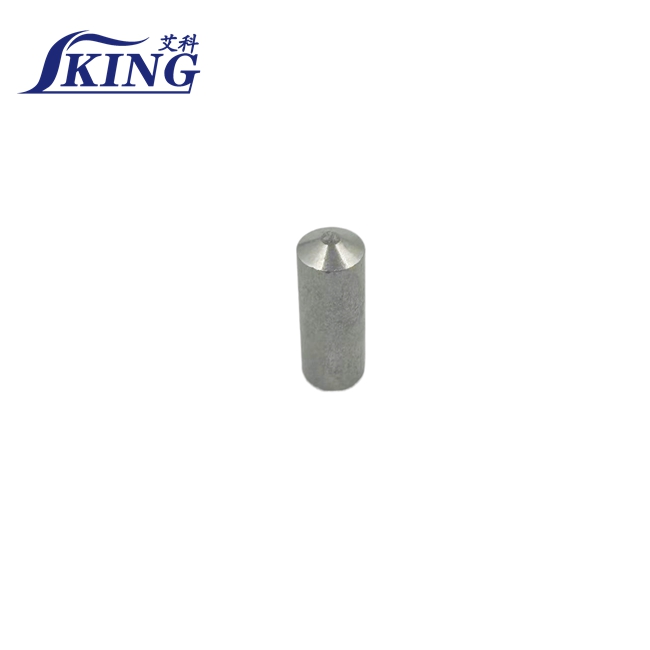

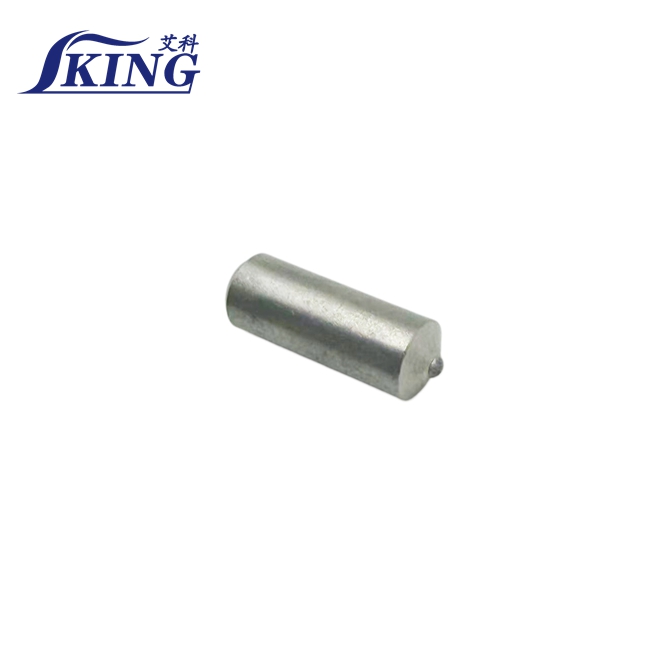

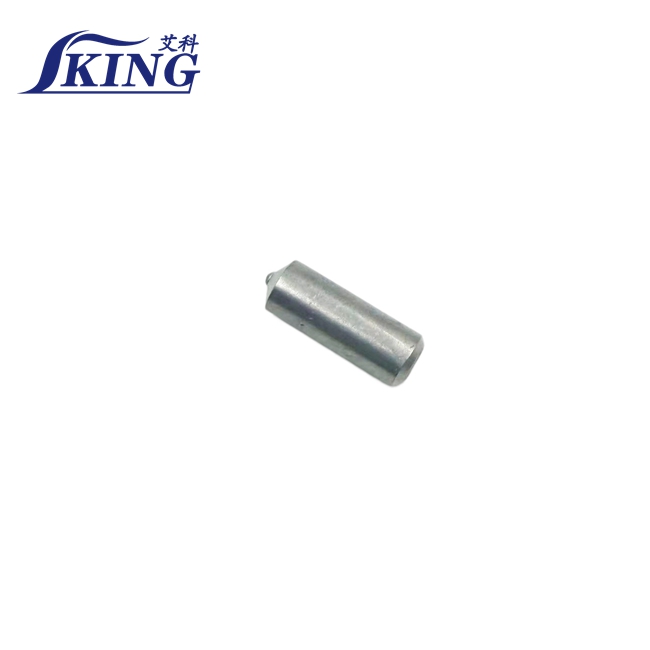

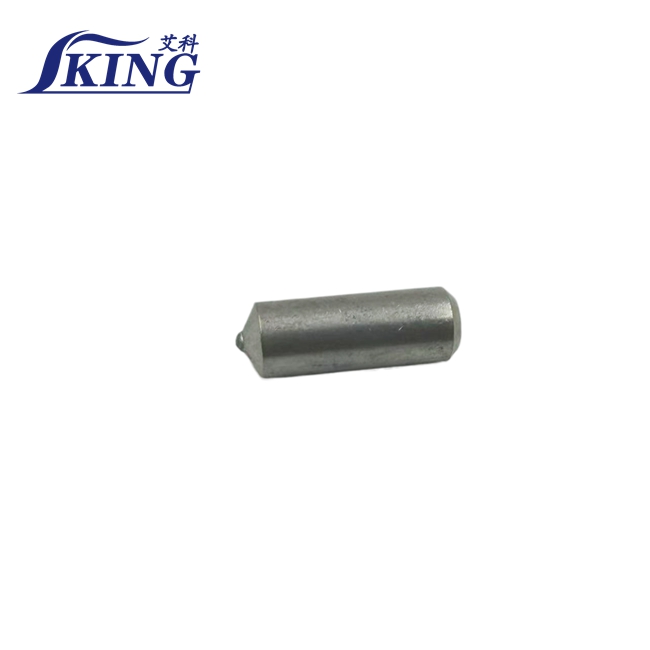

The IKING CD Weld Pin is a carbon steel short cycle drawn‑arc weld stud designed to create strong, reliable connections between metal substrates and insulation materials, panels, or other thin components. As a specialized stud welding fastener, it is engineered for applications where fast installation, consistent weld quality, and long‑term holding power are essential.
This weld pin is suitable for use with drawn‑arc stud welding equipment, allowing the stud to be welded directly onto a steel surface in a short cycle time. The design helps minimize surface damage, reduces the risk of weak joints, and supports efficient assembly in both standard and customized production environments. Because of its cylindrical shape and welding base, the product can be used in areas where mechanical fastening alone may not provide sufficient stability or where screw installation would be impractical.
The IKING CD Weld Pin is manufactured from carbon steel, offering a balance of strength, weldability, and cost‑effectiveness. It is available in plain finish and can be adapted with different surface treatments based on project requirements. This makes it suitable for general industrial use, electrical equipment assembly, cabinet manufacturing, machinery production, and other applications requiring secure insulation fixing.
Product Name:IKING CD Weld Pin
Product Type:Short Cycle Drawn‑Arc Weld Stud
Material:Carbon Steel
Welding Process: Short cycle drawn‑arc stud welding
Application Range: Insulation materials fixing, cabinet assembly, machinery manufacturing, industrial equipment installation
Surface Finish: Plain finish or customized surface treatment
Diameter: Custom sizes available according to project requirements
Length: Custom lengths available upon request
Standard Reference: ISO 13918, GB/T 10433
Feature: Stable welding performance, high connection strength, easy installation, minimal surface damage
Packing: Export standard packaging or wooden pallet based on order volume
| Item | Details |
|---|---|
| Product Name | IKING CD Weld Pin Short Cycle Drawn‑Arc Weld Stud |
| Common Specifications | Custom diameter, customizable length upon customer drawings |
| Material | Carbon steel |
| Welding Process | Short cycle drawn‑arc stud welding |
| Surface Treatment | Plain black, zinc plated or customized finishes |
| Product Features | Stable welding performance, high connection strength, low heat input, easy installation, fit for thin steel plate |
| Workmanship | Automated precision production |
| Supply Capability | 4500‑6000 PCS per hour |
| Base Plate Requirement | Minimum base steel plate thickness ≥6mm |
| Applications | Control cabinets, industrial enclosures, machinery housings, insulation fixing for industrial equipment |
| Relevant Standard | ISO 13918, GB/T 10433 |
| Packing |
Export carton, wooden pallet for bulk shipment |

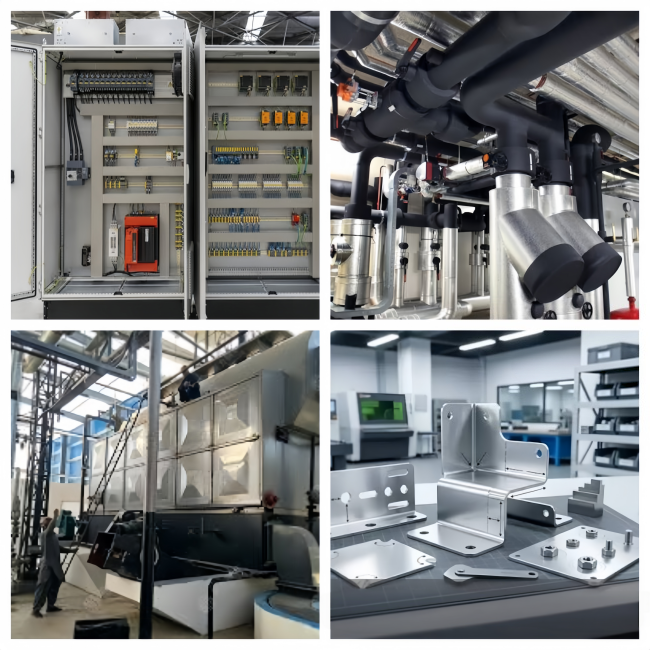

The IKING CD Weld Pin is commonly used in situations where insulation sheets, foam panels, metal foils, or protective coverings need to be firmly attached to steel surfaces. It is widely applied in electrical control cabinets, industrial enclosures, HVAC equipment, machinery housings, and metal structure assemblies.
One of the main advantages of this product is its ability to support fast and repeatable installation. When used with appropriate stud welding tools, workers can complete the fixing process more quickly than with traditional drilling and screwing methods. This can help reduce assembly time, lower labor costs, and improve consistency across large production batches.
In cabinet and enclosure manufacturing, the CD Weld Pin helps hold internal insulation layers and mounting components in place without requiring additional holes that could affect protection ratings. In machinery and industrial equipment, it provides a reliable method for attaching insulation, noise reduction materials, and internal panels. Its short cycle welding process also makes it suitable for thin steel plates where excessive heat input could cause deformation.
Choosing the right weld stud supplier is important for product quality, delivery stability, and long‑term technical support. IKING focuses on industrial fastening solutions and has experience in providing stud welding fasteners for different industries, including construction, machinery, electrical equipment, and metal structure projects.
We can offer more than just standard products. Our team can help customers select the most suitable weld pin type, size, and surface treatment based on specific application scenarios. If standard dimensions do not match your project requirements, we can discuss custom drawings, samples, or special production plans to meet your technical needs.
Before placing an order, we can provide product information, specification confirmation, and compatibility suggestions to help you avoid incorrect selection. During production, we can arrange reasonable scheduling to support batch orders and urgent project demands. After delivery, we can also assist with usage guidance, installation suggestions, and problem analysis if customers encounter welding or application issues.
Our service is designed to make the procurement process easier: clear product specifications, flexible customization options, reliable quality control, and responsive communication. If you need a stable supplier for CD Weld Pins, we can provide a professional solution that balances performance, cost, and delivery efficiency.
Q: What is a CD Weld Pin used for?
A: It is mainly used for fixing insulation materials, panels, foils, and internal components onto steel surfaces, especially in cabinets, machinery, enclosures, and industrial equipment.
Q: Can I get custom sizes?
A: Yes, custom diameter, length, and surface treatment can be provided according to your project requirements.
Q: What material is this product made of?
A: The IKING CD Weld Pin is typically made of carbon steel, which offers good weldability, strength, and cost efficiency.
Q: Do you provide samples before bulk order?
A: Yes, we can discuss sample availability based on product type and customization requirements.
Q: What standards does this product follow?
A: It can be referenced to ISO 13918 and GB/T 10433, depending on the specific product series and order specifications.
Q: How is the CD Weld Pin installed?
A: It is usually installed using short cycle drawn‑arc stud welding equipment, which welds the stud onto the metal surface quickly and securely.
Q: Can you help me select the right weld pin for my project?
A: Yes, please provide information such as base material thickness, insulation thickness, required load capacity, and installation equipment, and we can recommend a suitable solution.
