Commercial Insulation Pins & Mechanical Fastening Systems

In industrial insulation, thermal management, and HVAC ductwork projects, long-term system performance relies on reliable mechanical anchoring. While thermal blankets, mineral wool, and acoustic duct liners provide necessary insulation, improper mounting hardware leads to material sagging, hot spots, and costly structural failure.

China IKING Industrial Group manufactures a comprehensive range of commercial-grade Insulation Pins, mechanical hangers, and stud welding hardware. Designed for demanding applications—from high-velocity HVAC ducts to high-temperature industrial boilers and marine bulkheads—our fastening systems deliver exceptional holding strength and long-term corrosion resistance across various metal substrates.

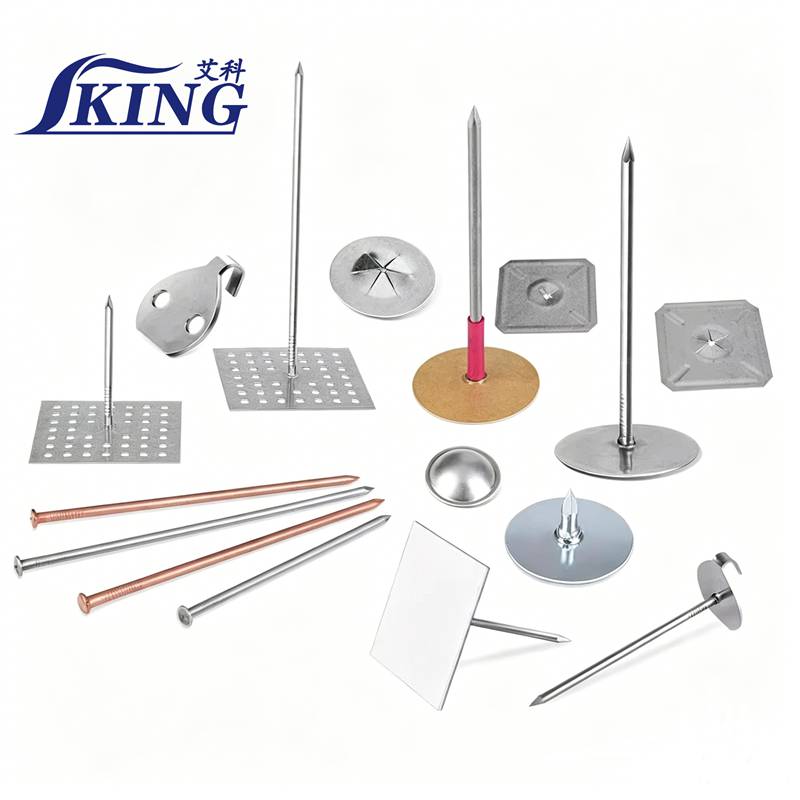

Comprehensive Product Range & Application Guide

Selecting the right insulation fastener depends on base metal thickness, installation speed, operating temperature, and site welding restrictions. IKING provides tailored mechanical fastening lines for diverse field requirements:

1. Capacitor Discharge (CD) Weld Pins

The industry standard for permanent insulation attachment on thin sheet metals. CD weld studs feature a micro-weld tip on the base flange that discharges electrical energy in milliseconds, forging a full cross-sectional metallurgical bond without burning or marring the opposite metal surface.

• Primary Uses: Commercial HVAC duct wrap, pressure vessel lagging, industrial tank casings, and ship bulkheads.
• Materials: Copper-plated carbon steel, Stainless Steel (SS304 or SS316), and Structural Aluminum.

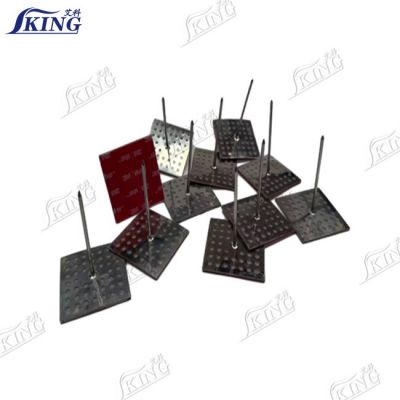

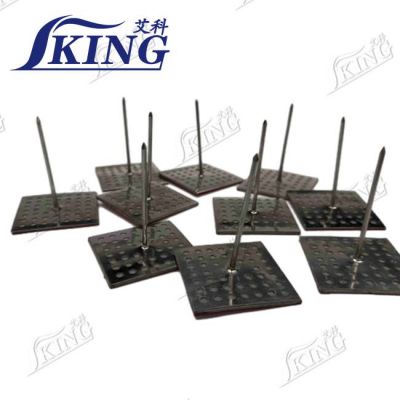

2. Self Adhesive Pins (Stick-Up Fasteners)

Engineered for maintenance retrofits or live chemical plants where welding equipment is restricted or hot work permits are prohibited.

• Mechanism: Feature a sturdy metal pin firmly riveted to a galvanized steel base plate with a high-tack, double-sided foam adhesive backing.
• Primary Uses: Self adhesive pins allow rapid mounting on smooth sheet metal, air handling units (AHUs), and acoustic wall panels without drilling or welding.

3. Pre-Assembled Cup Head Weld Pins

A labor-saving solution designed for high-volume sheet metal shops and field insulation contractors.

• Mechanism: Combine a sharp pin shank and a bevel-edged retaining washer into a single pre-assembled unit. The fastener is pressed directly through the insulation blanket and welded to the metal backing in a single trigger pull.
• Primary Uses: Cup head weld pins streamline high-speed HVAC duct lining and pre-insulated duct assembly.

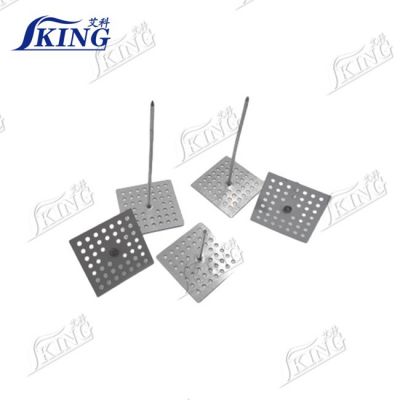

4. Perforated Base Insulation Pins

Ideal for mounting insulation on rough concrete walls, masonry, or curved vessel walls where adhesive tape cannot bond sufficiently.

• Mechanism: The flat metal base plate features uniform punched holes. When pressed into structural mastic or duct adhesive, the paste extrudes through the perforated base holes to create a permanent mechanical lock upon curing.
• Primary Uses: Cold storage walls, mechanical equipment rooms, and soundproofing enclosures.

5. Insulation Hangers & Support Spindles

Built to support thick, dense mineral wool slabs or acoustic boards on vertical drops and overhead ceilings.

• Mechanism: Heavy-gauge insulation hangers act as rigid spindles that distribute shear weight evenly, preventing heavy insulation materials from sagging over time.
• Primary Uses: Industrial boiler walls, transit hub acoustic ceilings, and structural steel fireproofing.

6. High-Temperature Lacing Anchors

Specially designed for removable insulation jackets, thermal blankets, and high-heat process equipment requiring routine maintenance.

• Mechanism: Lacing anchors are inserted through blanket edges, allowing field crews to lace sections tightly together using stainless steel tie wire or spring clips.
• Primary Uses: Industrial furnaces, steam turbines, exhaust manifolds, and high-temp valve covers.



Technical Manufacturing Specifications

All IKING Insulation Pins and hardware accessories are produced under strict ISO 9001 quality management procedures to ensure precise wire gauges, clean weld tips, and reliable plating adhesion.

Product Type	Available Wire Gauges	Standard Pin Lengths	Base Material Options	Compatible Washers / Caps
CD Weld Pins	12G (2.7mm), 10G (3.4mm)	3/4" (19mm) – 12" (300mm)	Mild Steel, SS304/316, Aluminum	Speed Washers (Round/Square)
Self Adhesive Pins	12G (2.7mm), 10G (3.4mm)	1-1/2" (38mm) – 8" (200mm)	Galvanized Base, SS Shank	Self-Locking Washers, Dome Caps
Cup Head Weld Pins	12G (2.7mm), 10G (3.4mm)	1" (25mm) – 6" (150mm)	Carbon Steel, Galvanized Head	Pre-Assembled Cupped Washer
Perforated Base Pins	12G (2.7mm), 10G (3.4mm)	1-1/2" (38mm) – 10" (250mm)	Mild Steel, Stainless Steel	Speed Washers, Nylon Caps
Insulation Hangers	10G (3.4mm), 3/16" (4.7mm)	2" (50mm) – 12" (300mm)	Galvanized Carbon Steel, SS304	Heavy-Duty Spring Clips
Lacing Anchors	12G (2.7mm), 14G (2.0mm)	2-1/2" (63mm) – 4-1/2" (114mm)	SS304, SS316, Inconel	Lacing Washers, Tie Wire



Core Industry Applications

Our mechanical insulation hardware is trusted by global engineering firms, HVAC contractors, and distributors across key industrial sectors:

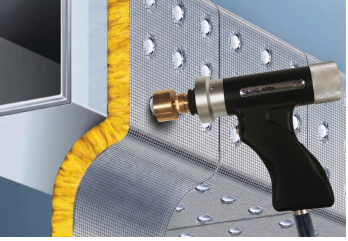

• HVAC & Sheet Metal Contracting: Securing acoustic liners, fiberglass duct wrap, and internal sound baffles.

• Marine & Shipbuilding: Mounting bulkhead fireproofing, engine room acoustic barriers, and thermal insulation on marine vessels.

• Power Generation & Refineries: Fixing mineral wool and ceramic fiber blankets on boilers, storage tanks, and high-pressure steam pipes.

• Commercial Building Envelopes: Curtain wall thermal spandrels, structural fireproofing, and acoustic ceiling partitions.



Why Choose China IKING Industrial Group?

With over 30 years of manufacturing excellence in stud welding systems and industrial fasteners, China IKING Group offers complete supply chain confidence for global importers, distributors, and project contractors.

1. Factory-Direct Pricing: Direct factory supply eliminates intermediate markups while ensuring consistent batch quality.

2. Strict Quality Inspection: Every lot undergoes dimensional checks, tensile pull tests, and plating thickness inspections before shipment.

3. Turnkey Supply Chain: We supply both consumable Insulation Pins and portable CD stud welding equipment for single-source procurement.

4. Export-Grade Packaging: Products are packaged in heavy-duty 5-ply cartons and palletized on fumigated wooden pallets for safe international ocean transport.

Looking for certified insulation fasteners for your next contract?

Contact IKING Sales Team today to request product data sheets, bulk factory pricing, or free testing samples shipped straight to your facility.
