short-cycle ground-stud-with-cap

Short cycle ground stud with cap are specialized fasteners for short-cycle arc stud welding, primarily for use in control or electrical cabinets, designed for grounding applications. In short-cycle stud welding, the arc duration is extremely short (typically less than 0.1 seconds), which minimizes heat input and allows Short cycle ground stud with cap to be quickly and efficiently secured to thin metal plates or surfaces without significant distortion.

Short cycle ground stud with cap are designed to create a secure electrical connection and are often used in conjunction with a protective cap to ensure safety and protect the connection point from moisture, dirt or corrosion. This is critical in grounding systems where a reliable, continuous electrical connection is essential for proper function. We have some of these short-cycle grounding studs with caps in stock, please feel free to enquire.

Applications:

Electrical grounding in construction and industry:

Grounding studs are commonly used to establish grounding points in steel structures, buildings and industrial equipment. These grounding points ensure safe dissipation of electrical charges or lightning strikes.

Automotive and Transportation Grounding Studs:

Used to establish reliable electrical grounding points in automobiles, trucks and railroad cars where quick, strong and lightweight connections are essential.

Electrical panels and equipment, cabinets:

Short-cycle grounding studs provide secure grounding for electrical control panels, switchgear and other equipment that require an effective ground connection to prevent electrical failure.

Power Plants and Renewable Energy Systems Projects:

Grounding systems for power generation and distribution facilities ensure the safe operation of electrical infrastructure by minimizing the risk of discharge or lightning damage.

Telecommunications and Data Centers:

Grounding studs are used in server racks, telecom towers and other critical equipment that require proper grounding to maintain operational integrity and protect sensitive electronic equipment from electrical surges.

Features

Quick Installation: Short-cycle grounding studs with cap welds can be installed quickly with minimal heat input, reducing installation time and labor costs.

Reduced Heat Affected Zone (HAZ): Minimized heat ensures no significant distortion of the substrate, even on thin boards or materials.

Strong and Reliable Grounding: Provides a strong ground connection, which is critical for electrical safety and equipment protection.

Corrosion Resistant (Durable): The use of protective caps insulates the connection from environmental factors, ensuring longevity in harsh environments.

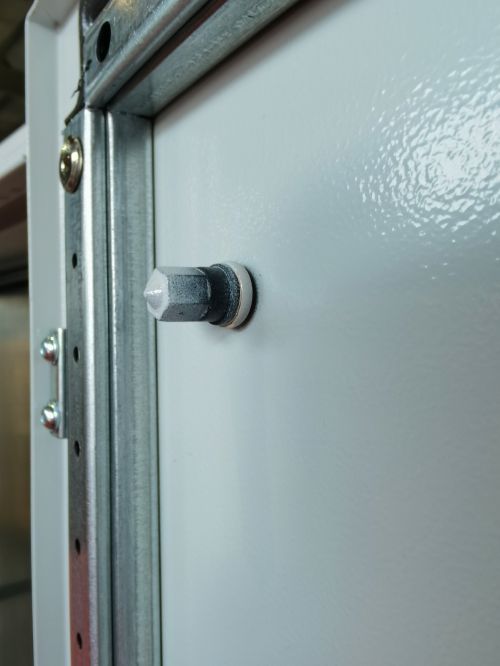

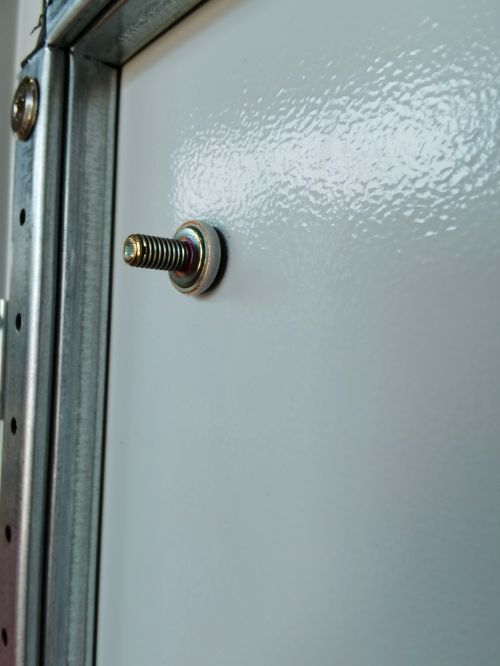

Application Pictures
