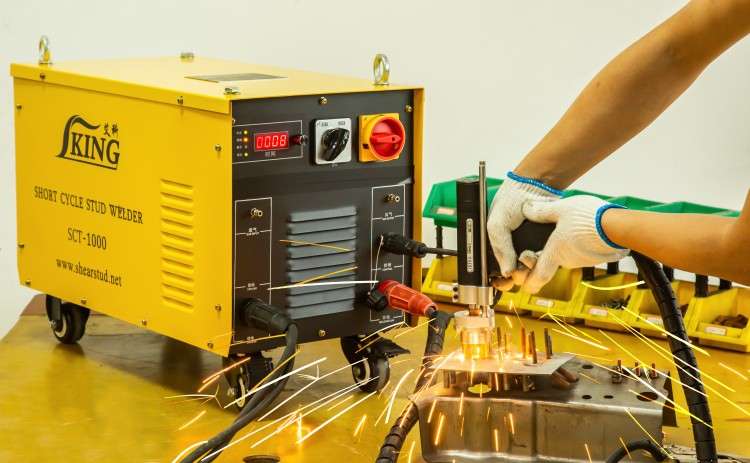

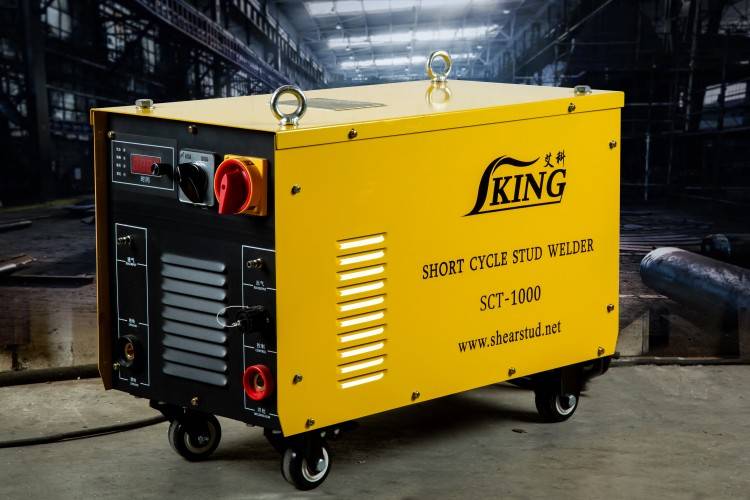

SCT Series short cycle stud welding machine

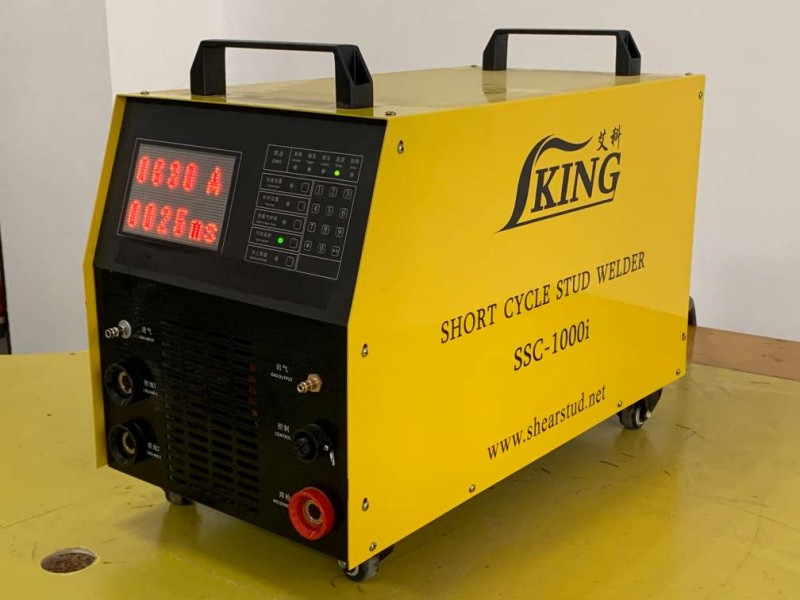

SSC Series short cycle stud welding machine
| Model | SSC-800i | SSC-1000i | SSC-1200i |
| Power Input | 3phase 380V/50 or 60Hz(other voltages available) | ||
| Power Fluctuation Range | ± 10% | ||
| Power cable (3 phase) | 3 x 10mm2 + 1 x 6mm2 | 3 x 16mm2 + 1 x 6mm2 | |
| Weld Studs Materials | Carbon Steel, Stainless Steel, Aluminum etc. | ||
| Weld stud range (Ceramic Ferrule) | 3-12mm | 3-14mm | 5-22mm |
| Weld stud range (Short Cycle) | 3-8mm | 3-12mm | 3-12mm |
| Weld stud range (Gas Protection) | 3-10mm | 3-12mm | 3-12mm |
| Max Welding Current | 800A | 1000A | 2000A |
| Welding Current Range | 100-800A | 100-1000A | 300-2000A |
| Welding Time | 5-1000ms | 5-3000ms | |
| Pre-ventilation Time | 500-2000ms | ||
| Max Welding Rate | 25pcs/min (M8) | 25pcs/min (M12) | 8pcs/min (M22) |
| Control Cable | 4 x 1mm2 | ||
| Max Length of Welding Cable | 50m | ||
| Max Length of Earth Cable | 20m | ||
| Cooling Method | Air Cooling | ||
| Protection Class | IP23 | ||
| Dimensions (L*W*H) | 600 x 320 x 400mm | 600 x 320 x 400mm | 640 x 320 x 700mm |
| Machine Weight | 35kg | 38kg | 75kg |

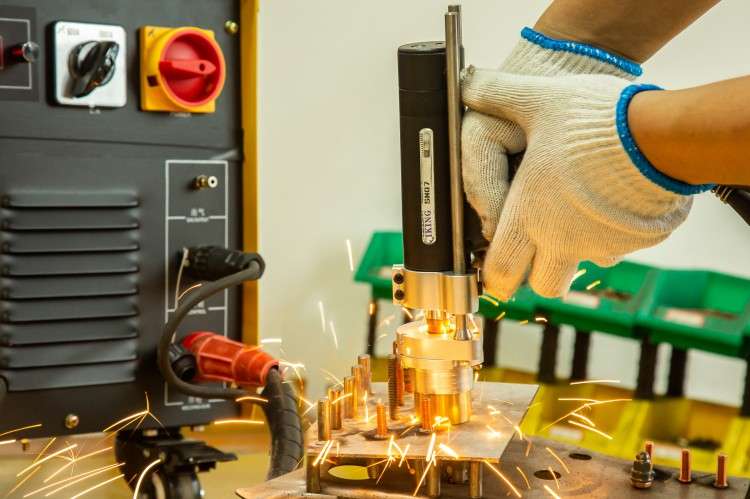

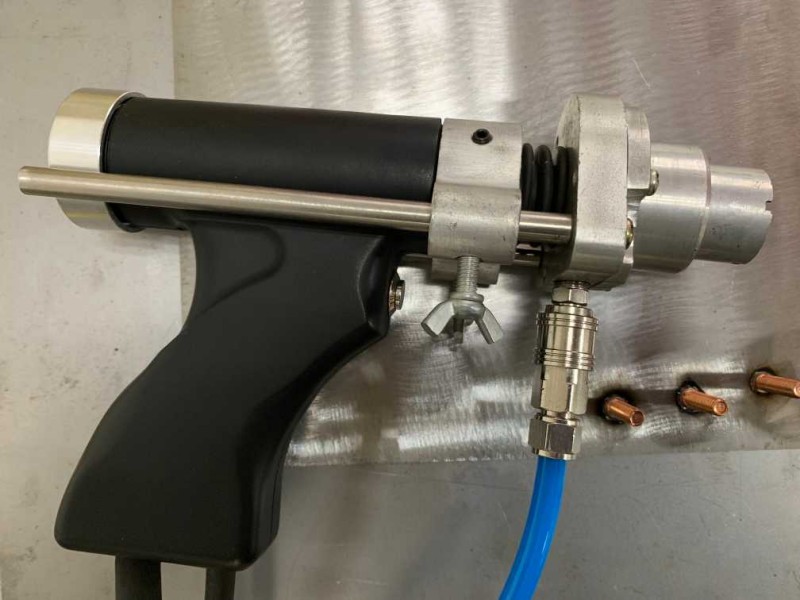

| Standard Supply Scope | 1. Stud Welder; 2. SNQ7 Stud Weld Gun; 3. 10m Weld Cable; 4. Earth Clamp; 5. Earth Cable; 6. 5 sets Stud Chucks & Ferrule Holders; 7. Operation Manual |
||
We offer a range of SC stud welding machines suited for different applications, including:
✔ Portable SC Stud Welders – Lightweight and easy to use for on-site welding.
✔ High-Performance SC Welding Systems – Designed for industrial and production line operations.
✔ Automated SC Stud Welding Solutions – Custom-built systems for high-speed, precision welding.
