Insulation Pins

insulation-pins

Insulation pins are fasteners used to secure insulation materials to various surfaces in many area, including walls, ceilings, and ductwork etc. These insulation pins are crucial in thermal and acoustic insulation systems, providing a secure method of attaching insulation glasswool, rockwool, ceramic firber blankets, boards, or batts to metal, concrete, or other substrates. Insulation pins come in a variety of designs, with some featuring adhesive bases, weldable studs, or mechanical fasteners, depending on the application.

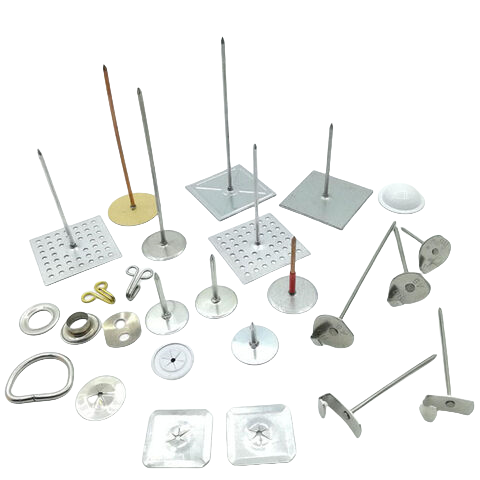

Classification of Insulation Pins:

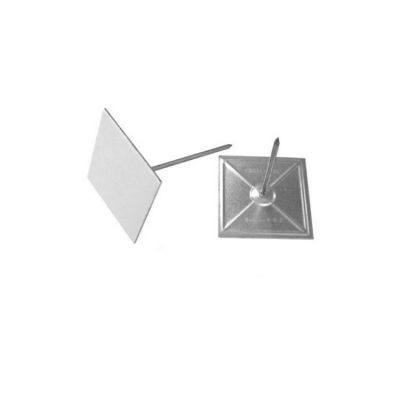

Adhesive Insulation Pins:

These Adhesive pins come with a pre-applied adhesive base, which allows them to be directly applied to surfaces without the need for welding or mechanical fastening.

Typically used in applications where welding is not feasible, such as in HVAC systems or on non-metallic surfaces.

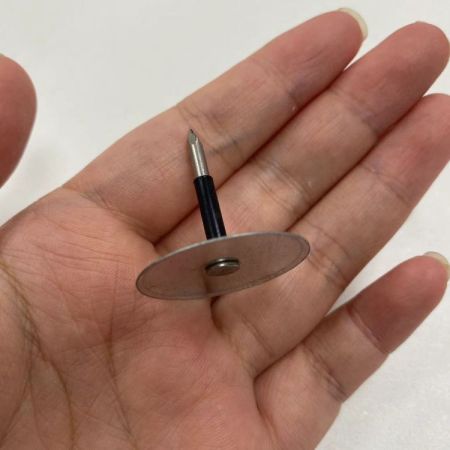

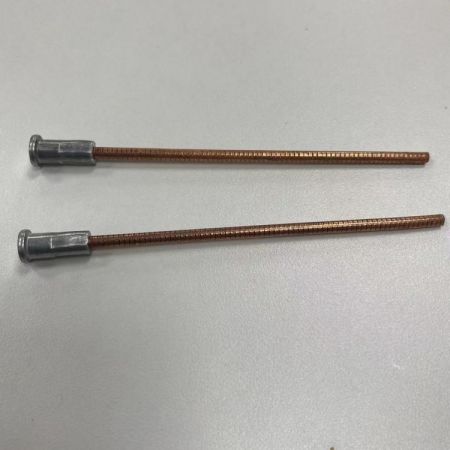

Weldable Insulation Pins (Cup head pins etc):

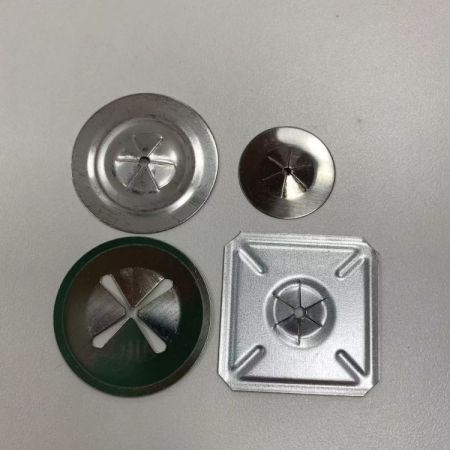

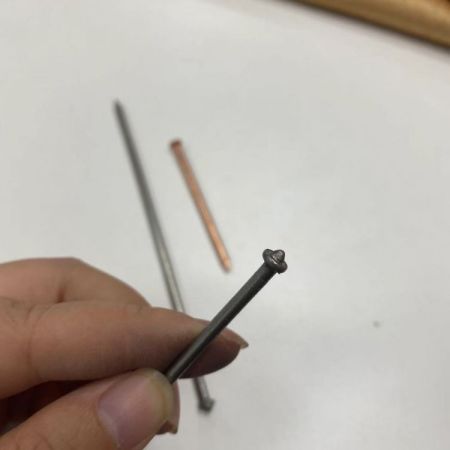

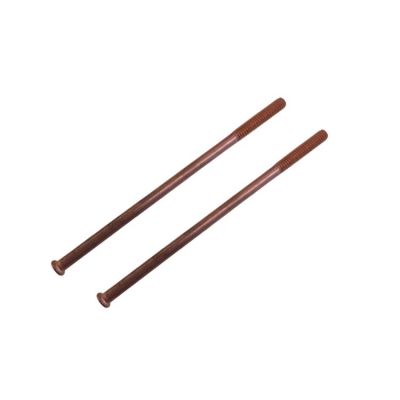

Weldable pins (cup head pins or CD weld pins) are designed to be spot-welded directly onto metal surfaces. CD weld pins once welded, the insulation material is impaled on the pin and secured with a locking washer. it will need our stud welder or insualtion pin welder to install, if you need stud welder we can supply.

Commonly used in industrial and commercial environments where metal surfaces require insulation.

Self-Stick Insulation Pins:

Self-stick insulation pins have a base coated with pressure-sensitive adhesive. ideal for quick installation on clean surfaces and do not require additional tools or welding.

Commonly used in residential or light commercial insulation projects, it is very easy to install. it will secured with a locking washer.

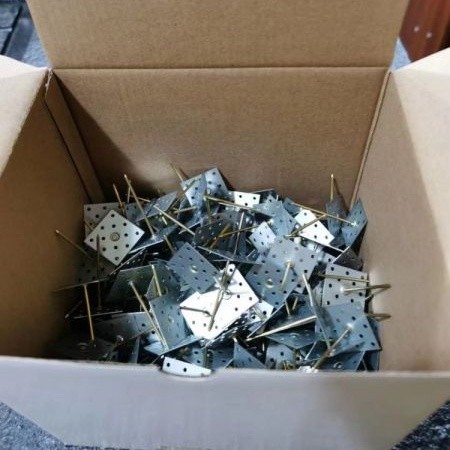

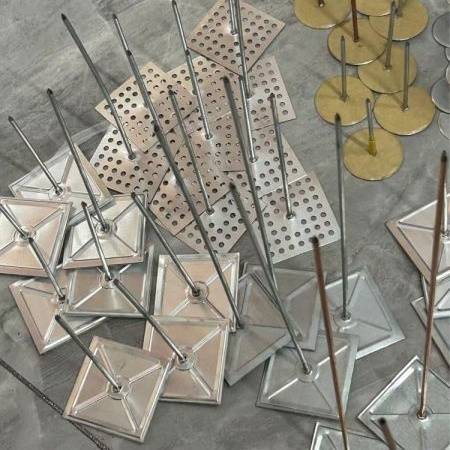

Perforated Base Insulation Pins:

These pins feature a perforated metal base, which can be mechanically fastened or adhered to surfaces. The perforations allow for additional adhesives or mechanical fasteners to be used. it will secured with a locking washer.

Often used in situations where strong attachment is necessary, like securing insulation to metal or concrete surfaces.

Hang-Type Insulation Pins:

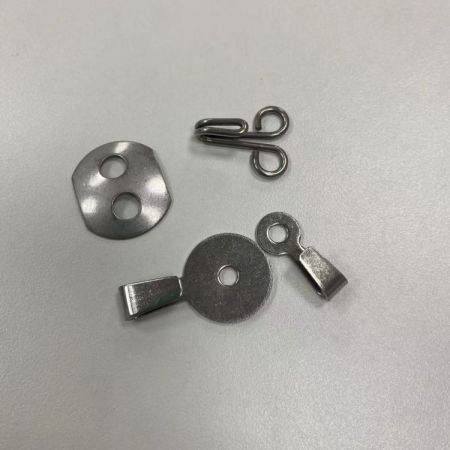

These pins are designed with hangers or clips to hold the insulation in place.

Used in applications such as pipe insulation or areas where the insulation material needs to be hung vertically.

Applications:

HVAC Systems or air conditioning: Insulation pins are widely used to secure insulation to ductwork, ensuring energy efficiency by preventing heat loss or gain.

Industrial Plants: Weldable insulation pins are commonly used in high-temperature environments such as refineries, power plants, and chemical processing facilities, where insulation is needed to control heat and reduce energy costs.

Construction and Building Insulation: Insulation pins are used to attach insulation materials in walls, ceilings, and roofs to enhance thermal insulation, improve energy efficiency, and provide soundproofing.

Appliances: Insulation pins are used to fasten insulation inside appliances like ovens and water heaters to control heat flow and improve performance.

Benefits:

Secure Fastening: Insulation pins ensure that insulation materials stay in place, reducing the risk of gaps and heat loss.

Versatility: Available in various designs to suit different substrates (metal, concrete, etc.) and types of insulation.

Easy Installation: Self-adhesive and weldable options provide fast, reliable attachment methods for a variety of applications.

Above All, insulation pins are essential components in the installation of insulation systems across various industries, helping to improve energy efficiency and maintain temperature control.
