Self-Adhesive Insulation Pins Application Areas:
- Air conditioning pipes: Used for securing insulation material around ductwork and piping.
- Glass and wooden walls: Effective for clean, smooth, and oil-free surfaces.
- Function: Primarily used to fix glass wool in place, ideal for clean environments.
Product Information:

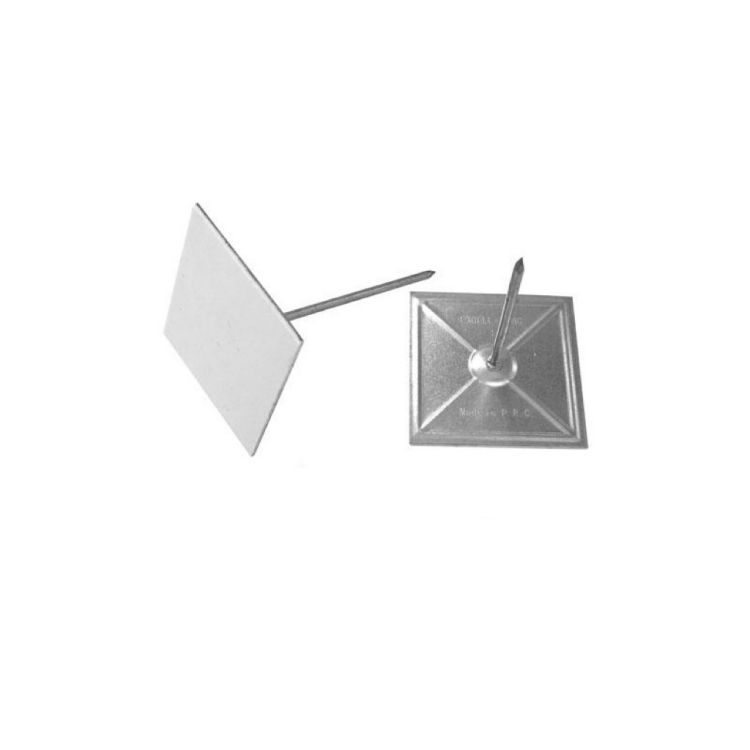

- Product Name: Self-Adhesive-Insulation-Pins
- Material:
- Base Plate: Galvanized tinplate
- Nail: High-quality aluminum wire
- Base Plate Specifications: Available in sizes 22x22 mm, 24x24 mm, 30x30 mm, 50x50 mm
- Nail Length: Ranges from 20 mm to 500 mm
Description:
Suitable for low-temperature insulation projects, such as air duct insulation, glass curtain walls and steel structures. Installation is carried out with a special quick-drying adhesive or a high-grade foam adhesive designed for insulation nails.
Usage Steps:
- Prepare the surface: Ensure it is clean and free of oil.
- Apply glue: Apply a small amount of glue to the bottom of the mesh insulation nail.
- Adhere to the surface: Stick the insulation nail to the construction surface.
- Attach insulation board: Once the glue has dried, pass the insulation board through the nail tip.
- Secure with gasket: Use the self-locking gasket on the nail's tail and press the insulation board in place.
- Bend the nail tail: Adjust the nail tail according to the thickness of the insulation layer.
Product Features:
- Durable: Resistant to aging, corrosion, sudden temperature changes, cold, and heat.
- High Strength: Offers high bearing and pressure capacity, good tensile performance.
- Stable: Maintains shape under load, moisture-proof, reduces vibrations, and provides good thermal insulation.
